Cable Blowing Machines

STNK offers equipment from Plumettaz S.A. (Switzerland), a global leader that recently celebrated its centennial in 2023, for the blowing of microcables into microducts.

Until 1987, underground cables were typically installed using the pulling method, until Plumettaz S.A. revolutionized the process with their patented blowing systems. They invented the technology that allows cables to be pushed through ducts using air or water, enabling the installation of cables over longer distances with less manual effort. This leadership has been maintained to this day, and the company continues to successfully innovate.

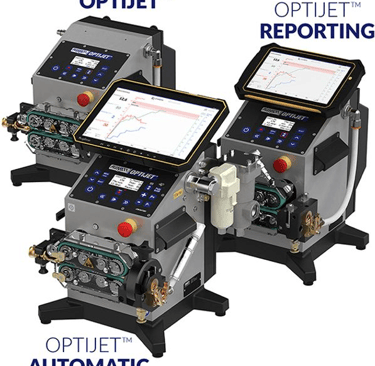

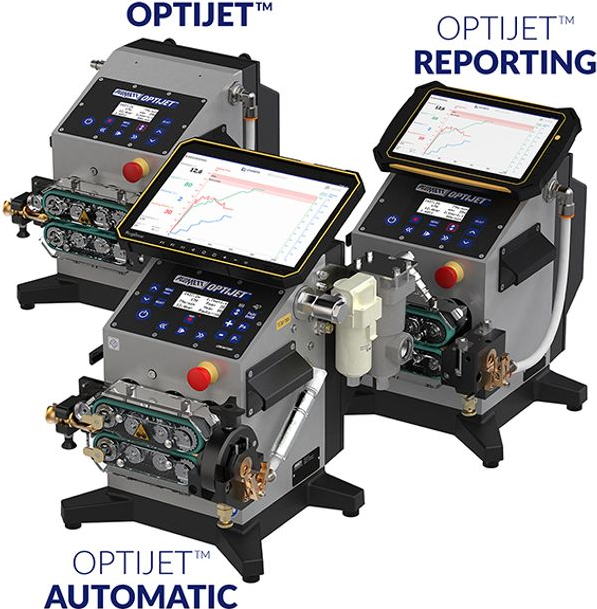

Currently, the microcable blowing equipment OptiJet™ from Plumettaz S.A. (Switzerland) is the most sought-after and widely used tool for deploying FTTH (Fiber to the Home) networks. It is used to blow microcables with a diameter of Ø 1.5 to 8 mm into ducts with an external diameter ranging from 3 to 16 mm. The equipment is available in three versions: OptiJet™, OptiJet™ Reporting, and OptiJet™ Automatic. The OptiJet™ Reporting version allows the recording of physical parameters during the microcable installation process, while the latest OptiJet™ Automatic version automatically controls the supply of compressed air.

Advantages of OptiJet™ equipment:

Quick Setup and Autonomy – A compact, lightweight, and battery-operated machine. It requires very few inserts and seals, and there are no power cables, generators, or fuel. This not only ensures convenience and simplicity but also reduces noise in the workplace. The electric motors help conserve compressed air and enable efficient use of the compressor.

Settings Tailored to Each Situation – Automatic cable breakage testing with optimized settings for both pushing force and cable clamping with belts. Unique on the market: all OptiJet™ versions set the maximum pushing force level supported for each cable and duct combination, and, importantly, automatically adjust the required cable clamping force with belts to gently guide the cable into the duct and allow it to move without damage.

Maximum Microcable Protection – Precise control over speed, pushing force, and belt slippage. Unique on the market: Using belts, OptiJet™ accurately controls the speed, pushing force, and slippage, with its highly dynamic motors instantly stopping the cable in case of any obstruction in the duct, preventing even the slightest damage to the cable.
